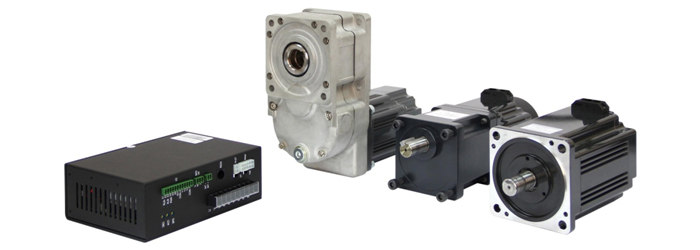

AF series BLDC Motor

The AF series AC input brushless DC motor and drive package offers variety of control functions. Motor power covers a range from 500W(2/3HP) to 750W(1HP).

Features

￭	Variety for speed setting method (PWM/PFM、External potentiometer/DC voltage、internal potentiometer)
￭	Programmable IO function and operation parameters
￭	Instantaneous stop and reverse operation (external regenerative unit required)

Specifications
Product Number Code
Product Line

Supply Voltage	2 models Single-phase 110VAC single/three-phase 220VAC
Mode of Operation	Speed control – motor speed control
Command	Network - RS485 or RS232 Modbus RTU/ASCII Digital indexing – Select among 8 preset operation data during operation by input function (M0, M1, M2). External analog input - 0 ~ 5 or 0 ~ 10VDC voltage. External potentiometer Internal potentiometer - Panel VR for speed, acceleration, deceleration setting Pulse input - PWM / PFM (frequency) 100 ~ 1kHz
IO	Digital input - 6 programmable inputs. Can use internal or external 24V. Pulse input - 1 pulse input (Need to set by jumper). Digital output - 3 outputs. (BUSY-OUT, PULSE-OUT, ALARM-OUT) Analog input - 1 analog inputs (speed setting) Internal potentiometer(SPD/ACC/DEC) - 3 internal potentiometers for speed, acceleration time and deceleration time setting
Network Communication	RS232 - Control motor or set parameter by Modbus ASCII.
Parameter Setting	RS232 - Set parameter by PC with easy interface software (A_HMI).

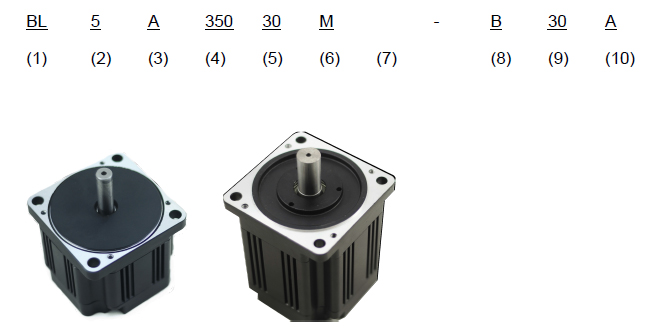

Motor with Gearhead (Combination Type*) Product Number Code

No.	Name	Description
1.	Motor Series	BL: BL series BLDC Motor. (Connect to AF drive by an extended cable)
2.	Motor Frame Size	5: 90mm 6: 104mm
3.	Rated Supply Voltage	A: 110VAC, Single Phase C: 220VAC, Single/Three Phase
4.	Output Power	350: 350W 500: 500W 750: 750W
5.	Rated Speed	30: 3000r/min
6.	Motor Shaft Type	Blank: Combination type (connected to gearhead already). GB : For GB series parallel shaft gearhead GBF : For GB series hollow shaft gearhead A : shaft with key and keyway D : D shaft
7.	Gearhead Series	B: GB5 series gearhead
8.	Gear Ratio	05 ~ 100
9.	Gearhead Shaft Type	A : Parallel shaft gearhead (with key and keyway) F : Hollow shaft flat gearhead

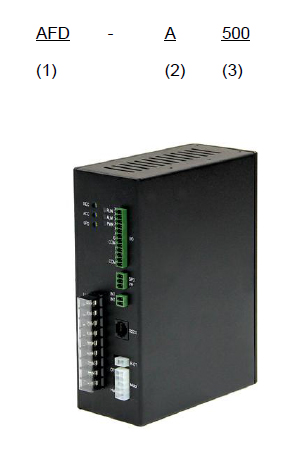

Drive Product Number Code

No.	Name	Description
1.	Drive Series	AFD: AF Series Drive
2.	Supply Voltage	A: 110VAC, Single Phase C: 220VAC, Single/Three Phase
3.	Rated Output Power	500: 500W 750:750W

Motor

Product	Model No.	Frame Size	Supply Voltage	Output Power (W)	Rated Torque	Speed Range	⬜ Shaft/ Gearhead Type
	BL5A35030⬜	90	110VAC	350	1.1N-m	100 ~ 4000 r/min	D: D Shaft A: Key and keyway Shaft GB: For GB series parallel shaft gearhead GBF: For GB series hollow shaft gearhead
	BL5A50030⬜	90	110VAC	500	1.6N-m
	BL5C50030⬜	90	220VAC	500	1.6N-m
	BL6C75030⬜	104	200VAC	750	2.35N-m

Motor + Gearhead

Product	Model No.	Frame Size	Supply Voltage	Output Power (W)	Motor Rated Torque	Speed Range (motor)	⬜ Gear Ratio: Permissible Torque	Shaft/ Gearhead Type
	BL5A35030-B⬜A	90	110VAC	350	1.1N-m	100 ~ 4000 r/min	5 / 10 / 15: 15N-m 20 / 30 / 50: 20N-m 100: 35N-m	GB5 series parallel shaft gearhead
	BL5A35030-B⬜F	90	110VAC	350	1.1N-m	100 ~ 4000 r/min	20: 22.1N-m 30: 33.2N-m 50: 5.3N-m	GB5 series hollow shaft gearhead

Drive

Product	Model No.	Supply Power		Output Power (W)	Motor Supported
	AFD-A500	110VAC	Single Phase	350 ~ 500	AFM5A35030⬛⬜ AFM5A50030⬛⬜
	AFD-C750	220VAC	Single Phase/ Three Phase	500 ~ 750	AFM5C50030⬛⬜ AFM5C75030⬛⬜
