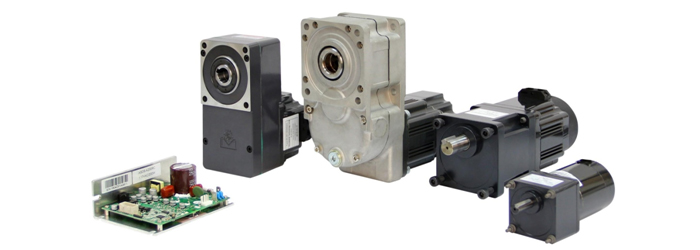

AS series BLDC Motor
The AL series AC input brushless DC motor and drive (open-frame) offers a compact solution package. Motor power covers a range from 90W to 350W.
Features
| ￭ | Competitive price |
| ￭ | Compact drive size (131mm x 91mm x 43/49mm) |
| ￭ | Programmable IO function and operation parameters |
| ￭ | Instantaneous stop |
- Specifications
- Product Number Code
- Product Line
| Supply Voltage | 2 models Single-phase 110VAC single-phase 220VAC |
| Mode of Operation | Speed control – motor speed control |
| Command | Digital indexing – Select upto 8 preset operation data during operation by input function (M0, M1, M2). External analog input - 0 ~ 5 or 0 ~ 10VDC voltage. External potentiometer |
| IO | Digital input - 3 programmable inputs. (5VDC or 24VDC by different model) Digital output - 2 programmable output Analog input - 1 analog inputs (speed setting) |
| Network Communication | RS232 (Bluetooth) - Set parameter through Bluetooth or RS232 with specific transceiver. |
| Parameter Setting | RS232 (Bluetooth) - Set parameter by PC with easy interface software (A_HMI). Switch -Set digital input power and analog input range by on board switch and jumper. |

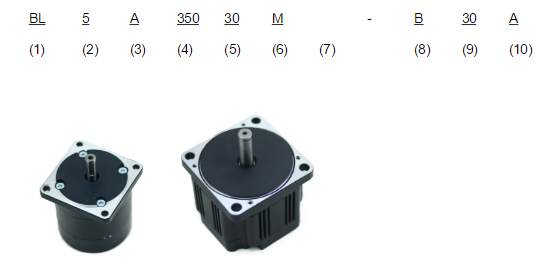

Motor with Gearhead (Combination Type*) Product Number Code
| No. | Name | Description |
| 1. | Motor Series | BL:BL series BLDC Motor. (Connect to AS drive by an extended cable) |
| 2. | Motor Frame Size | 2: 60mm 5: 90mm |
| 3. | Rated Supply Voltage |
A: 110VAC, Single Phase C: 220VAC, Single Phase |
| 4. | Output Power | 80: 80W 100: 100W 120: 120W 150: 150W 200: 200W 350: 350W |
| 5. | Rated Speed | 30: 3000r/min |
| 6. | Motor Shaft Type | Blank: Combination type (connected to gearhead already). GU : For GU2/5 series parallel shaft gearhead GB : For GB5 series parallel shaft gearhead GBF : For GB5 series hollow shaft gearhead GBSF : For GBS5 series hollow shaft gearhead A : shaft with key and keyway D : D shaft |
| 7. | Gearhead Series | U: GU2/5 series gearhead B: GB5 series gearhead BS: GBS5 series gearhead |
| 8. | Gear Ratio | 05 ~ 180 |
| 9. | Gearhead Shaft Type | A : Parallel shaft gearhead (with key and keyway) F : Hollow shaft flat gearhead |

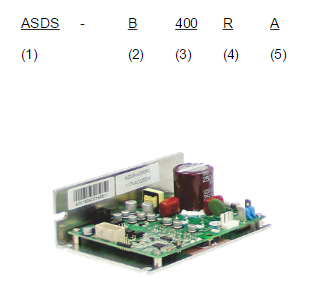

Drive Product Number Code
| No. | Name | Description |
| 1. | Drive Series | ASDS: AS Series Drive |
| 2. | Supply Voltage | A: 110VAC, Single Phase B: 220VAC, Single Phase |
| 3. | Rated Output Power |
200: 200W 400: 400W |
| 4. | Reserved | Blank/R: Standard model |
| 5. | Model | Blank: Standard model (24V or Internal 15V for control IO terminal) A: 5V for control IO terminal |
Motor
| Product | Model No. | Frame Size | Supply Voltage | Output Power (W) | Rated Torque | Speed Range | ⬜ Shaft/ Gearhead Type |
 |
BL2A08030⬜ | 60 | 110VAC | 80 | 0.26N-m | 250 ~ 4000 r/min | D: D Shaft A: Key Shaft GU: For GU series parallel shaft GB: For GB series parallel shaft gearhead GBSF: For GBS series hollow shaft gearhead GBF: For GB series hollow shaft gearhead |
 |
BL5A10030⬜ | 90 | 110VAC | 100 | 0.32N-m | ||
 |
BL2A12030⬜ | 60 | 110VAC | 120 | 0.39N-m | ||
 |
BL5A15030⬜ | 90 | 110VAC | 150 | 0.48N-m | ||
| BL5A20030⬜ | 90 | 110VAC | 200 | 0.64N-m | |||
| BL5C15030⬜ | 90 | 220VAC | 150 | 0.48N-m | |||
| BL5C20030⬜ | 90 | 220VAC | 200 | 0.64N-m | |||
| BL5C35030⬜ | 90 | 220VAC | 350 | 1.1N-m |
Motor + Gearhead
| Product | Model No. | Frame Size | Voltage | Output Power (W) | Rated Torque (Motor) | Speed Range (motor | ⬜ Gear Ratio & Rated Torque | Gearhead Type |
 |
BL2A08030-U⬜A | 60 | 110VAC | 80 | 0.26N-m | 250 ~ 4000 r/min | 5 / 10: 3N-m 20 / 30: 4.5N-m 50 / 75 / 100:6 N-m |
GU2 Parallel Shaft Gearhead |
 |
BL5A10030-U⬜A | 90 | 110VAC | 100 | 0.32N-m | 5: 3.5N-m 10: 7N-m 15: 10N-m 20: 13N-m 25: 15N-m 30: 18N-m 40 / 50 / 75 / 90 / 100 / 120 / 150 / 180: 20N-m |
GU5 Parallel Shaft Gearhead | |
| BL5A15030-U⬜A | 90 | 110VAC | 150 | 0.48N-m | ||||
| BL5C15030-U⬜A | 90 | 110VAC | 150 | 0.48N-m | ||||
 |
BL5A20030-B⬜A | 90 | 110VAC | 200 | 0.64N-m | 5 / 10 / 15: 15N-m 20 / 30 / 50: 20N-m 100: 35N-m |
GB5 Parallel Shaft Gearhead | |
| BL5C20030-B⬜A | 90 | 220VAC | 200 | 0.64N-m | ||||
| BL5C35030-B⬜A | 90 | 220VAC | 350 | 1.1N-m | ||||
 |
BL5A10030-BS⬜F | 90 | 110VAC | 100 | 0.32N-m | 20: 6.8N-m 33: 10.2N-m 50: 17N-m |
GBS5 Hollow Shaft Gearhead | |
| BL5A15030-BS⬜F | 90 | 110VAC | 150 | 0.48N-m | ||||
| BL5A20030-BS⬜F | 90 | 110VAC | 150 | 0.48N-m | ||||
 |
BL5A20030-B⬜F | 90 | 110VAC | 200 | 0.64N-m | 20: 22.1N-m 30: 33.2N-m 50: 5.3N-m |
GB5 Hollow Shaft Gearhead | |
| BL5C20030-B⬜F | 90 | 220VAC | 200 | 0.64N-m | ||||
| BL5C35030-B⬜F | 90 | 220VAC | 350 | 1.1N-m |
Drive
| Product | Model No. | Voltage | Output Power (W) | Analog Input | DI V | Motor Supported |
 |
ASDS-A200 | 110VAC | 200 | V | 24VDC | ASM2A08030⬜ ASM5A10030⬜ ASM2A12030⬜ ASM5A15030⬜ ASM5A20030⬜ |
| ASDS-A200RA | 110VAC | 200 | V | 5VDC | ||
| ASDS-B200 | 220VAC | 200 | V | 24VDC | ASM5C15030⬜ ASM5C20030⬜ |
|
| ASDS-B200RA | 220VAC | 200 | V | 5VDC | ||
| ASDS-B400 | 220VAC | 400 | V | 24VDC | ASM5C35030⬜ | |
| ASDS-B400RA | 220VAC | 400 | V | 5VDC |
