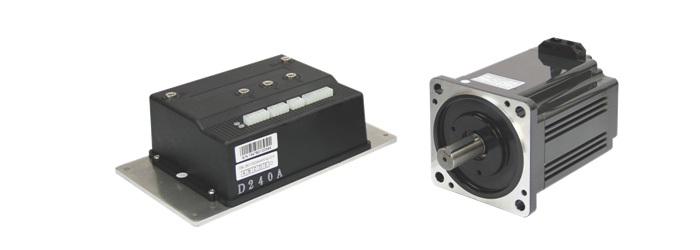

BV series BLDC Motor
The BV series DC input brushless DC motor and drive package offers four-quadrant operation. Motor power covers up to 100W(24VDC) / 1800W(48VDC).
Features
| ￭ | Electromagnetic brake type (MBrake) is suitable for position-holding during standstill |
| ￭ | Programmable throttle gain, offset and deadband. |
| ￭ | Programmable I/O function and Operation parameters |
| ￭ | Four Quadrant Operation, well-suited for AGV's smooth speed control (battery power required). |
| ￭ | Can drive BLDC motor or brushed DC motor. |
| ￭ | 12VDC input operation is possible (for single lead-acid battery applications) |
- Specifications
- Product Number Code
- Product Line
| Supply Voltage | 2 models 12/24VDC 48VDC |
| Mode of Operation | Speed control – motor speed control Position control – Position control with Multi-drive protocol. Duty Cycle – control output PWM % directly Brushed DC motor Duty Cycle – control output PWM % directly for brushed DC motor. |
| Command | Digital indexing – Select among 8 preset operation data during operation by input function (M0, M1, M2). External analog input - 0 ~ 5 or 0 ~ 10VDC voltage. External potentiometer Support throttle type or single-ended, wig-wag or more. |
| IO | Digital Input - 5 programmable inputs (TTL SINK) 5V Digital Input - 1 programmable input (TTL 5VDC SINK) Digital Output - 3 programmable outputs (Open-collector) Analog Input - 2 programmable analog inputs. Electromagnetic brake output - Control electromagnetic brake directly. Contact relay control - Control motor power contact relay. |
| Network Communication | RS232 - Control motor or set parameter by Modbus ASCII. |
| Parameter Setting | RS232 - Set parameter by PC with easy interface software (A_HMI). |
Motor with Gearhead (Combination Type*) Product Number Code
| No. | Name | Description |
| 1. | Motor Series | BVM : BV Series Motor |
| 2. | Motor Frame Size | 5 : 90mm 6 : 104mm 7 : 130mm |
| 3. | Rated Supply Voltage |
K : 24VDC N : 48VDC |
| 4. | Output Power | 500 : 500W 750 : 750W 1K0 : 1500W 1K5 : 1500W |
| 5. | Rated Speed | 15 : 1500r/min 30 : 3000r/min |
| 6. | Optional Function | Blank : Standard M : Electromagnetic Brake Type (MBrake) |
| 7. | Motor Shaft | A : Parallel shaft gearhead (with key and keyway) |
Drive Product Number Code
| No. | Name | Description |
| 1. | Driver Series | BVD : BV Drive |
| 2. | Supply Voltage | K : 24VDC N : 48VDC |
| 3. | Maximum Output Current |
120 : 120 A 190 : 190 A |
| 4. | Reserved | CQ : Standard code |
Motor
| Product | Model No. | Frame Size | Voltage | Output Power (W) | Rated Torque | Speed Range | Optional Function | Shaft Type |
 |
BVM5K50030⬛A | 90 | 24VDC | 500 | 1.6N-m | 100 ~ 3000r/min | Blank: Standard M: Electromagnetic Brake Type (MBrake) |
A: Parallel shaft Gearhead (with key and keyway) |
 |
BVM7K1K015⬛A | 130 | 24VDC | 1000 | 6.5N-m | 100 ~ 1500r/min | ||
 |
BVM6K75030⬛A | 104 | 48VDC | 750 | 2.35N-m | 100 ~ 3000r/min | ||
 |
BVM7N1K030⬛A | 130 | 48VDC | 1000 | 3.4N-m | |||
| BVM7N1K530⬛A | 130 | 48VDC | 1500 | 4.9N-m |
Drive
| Product | Model No. | Voltage | Maximum Output Current | Output Power (W)* | Functions | Motor Supported |
 |
BVD-K120CQ | 12VDC | 120 | 600 | Standard Model of 24VDC. Support 12VDC supply voltage for one Lead-acid battery power supply application. | BVM5K50030⬛A |
| 24VDC | 1200 | |||||
| BVD-K190CQ | 24VDC | 190 | 1800 | High Power Output Model of 24VDC | BVM7K1K015⬛A | |
| BVD-N120CQ | 48VDC | 120 | 1500 | Standard Model of 48VDC | BVM7N1K030⬛A BVM7N1K530⬛A |
|
